Quick Details

• Voltage:

  24V

• Power:

  3W

• Rated current:

  max 70mA

• Torque:

  4kgf.cm

• IP level:

  IP54

• Noice level:

  Max. 42dB(A)

• Life:

  500000 cycle

• Certification:

  TS16949

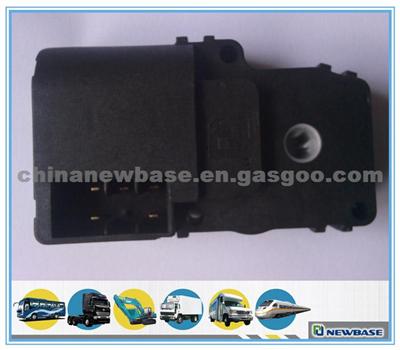

Product Name:Car Engine Cooling Valve Actuator

Car Engine Cooling Valve Actuator

Application

car,bus,truck,

Product Description:

DC24V TEMP /FRESH AIR DAMPER ACTUATOR (Feedback)

Fresh air damper actuator (feedback) applies to control the temp and air damper of the car and special vehicle.
Continuously adjust the temp by switching polarity of actuator wiring, at the same time, the actuator will send the ventilation door position signal back to system.

Application case:
WINIA MANDO, HYUNDAI , SSMC, DAIHAN, DENSO, IVECO.


Newbase Actuator is used for Vehicular Air Conditioning & Heating  Control System, such as bus, van, auto ,engineering truck, refrigeration system and so on.

They could be used for fresh air damper , air supply system or heater system, and also used for engine cooling system.

There are several types of actuator mainly,

Intake Actuator  ---- two wires, it open the damper to some an angle and close by changing the poiarity of wiring.

Switch Actuator ---- three wires, it turn on/off the damper by putting throught/cutting off the control wire.

Temp Actuator ---- five wires, the actuator operates by switching the poiarity of witing, it could also give a feedback of the postion to the HVAC system.

Mode Actuator---- seven wires,  it could control the damper to stop on different positions.

Voltage control actuator ---- it's driven by 0~10 V voltage signal.


NEWBASE ACTUATOR production capacity is 20,000pcs monthly.  These Actuators are exported to many countries in Asia, Europe, Amercia widely for many years.

Welcome to contact us for the most suitable model and further information!
