Quick Details

• Place of Origin:

  Fujian, China (Mainland)

• Delivery Time:

  0

• Packing:

  Carton,strong wooden,case or veneer case

• Delivery Port:

  FUZHOU

• OE Experience:

  No

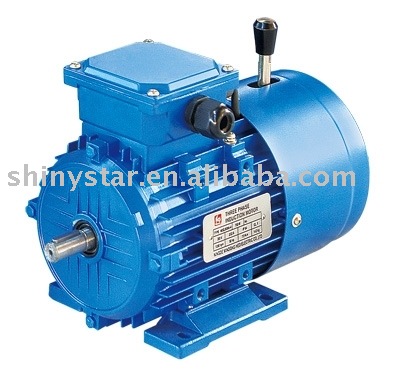

Product Name:Brake Fan Motor (msej Three Phase Asynchronous Braking Motor)

Brake Fan Motor (msej Three Phase Asynchronous Braking Motor)

Application

Universal

Product Description:

brake fan motor
1.high efficiency
2. low noise
3. and reliable braking...
Min. Order: 1 SetFOB Price: US $50-1000



Brake fan Motor (MSEJ three phase asynchronous braking motor)





APPLICATION:

Suitable for any kind of machine which is required to stop quickly ,located accurately,
Rotating and brake frequently, Such as: machine tools, packing machinery, wood worker,machinery,
Food processing machinery, chemical engineering machinery, textile machinery, construction machinery gear reducer and so on.

CONDITION:
 1)   Altitude:  Above seal level, not exceeding1000m.
2 )  Ambient temperature: it varies with seasons but not exceeding +40

VOLTAGE, FREQUENCY AND DUTY
1 )   Suitable Frequency:  50 Hz,60Hz
2 )   Rated voltage:220/380v, 380/660v, other request
3 )   Duty: continuous (S1)
4 )   Insulation class: B, F
5 )   Protection :IP54 or IP55

6)    Cooling:IC0141

7)    Connection :Star Y for powers below 3kw

                         Delta for 4kw and above.

8)    Ambient temperature:  -20~40

9)    Altitude: below 1000m



Specifications:



  (  MSEJ series three phase asynchronous braking motor )Salient SpecificationsFrame sizeAluminum ,    IEC 80-160Output        (kw)0.18-22Voltage      (V)(220V/ 380 ,  380/660V) ±10%,or other requestFrequency  (HZ)50 HZ, 60HZ  ± 5%Synchronous speed700r/min-poles, 950r/min 6-pole, 1400r/min 4- pole,2800r/min2-poleDutyS1,  S3-25%,     S6-40%Insulation ClassClass F  (max temperature limit  :  155 ) and Class B (max  temperature limit : 130 celciusEnclosureTotally encloses with IP55 Degree of ProtectionConnection1)  Star Y for powers below 3kw 2)  Delta for 4 kw and above.
CoolingForced Ventilated  ( ICO 141)MountiingHorizontal foot mounting,  IMB3, B5, B35, B14 ,B 34,B3  (Flange Mounting can be offered on request )SealV- ring or Head oilseal on end shied,  and Closing ring on end shiedsShaftShaft key and protector suppliedBearingDifferent Brand Bearing on request :   (  SKF, TPI, NTN, C&U, etc.)Fixing DimensionsConforms to IEC 72Ambient Temperature (-20 ~45 )  CelsiusAltitudeNot exceed 1000mRelative humidityNot higher than 90%PaintingFastness & Slinky  ( Utilise hanging conveyor painting production line )
