Intelligent Toyota Tester Ii

    • Application: Toyota
    • Market Type:After Market
    • FOB Price: Inquiry For It?
    • Payment Terms: T/T
    • Minimum Order: Negotiable Trial Order

Quick Details

  • Weight:

    1380g

  • Place of Origin:

    Guangdong, China (Mainland)

  • Delivery Time:

    0

  • Packing:

    standard package

  • Delivery Port:

    Shenzhen,Hongkong

  • OE Experience:

    No

Product Name:Intelligent Toyota Tester Ii

Intelligent Toyota Tester Ii

Application

Toyota

Product Description:


toyota tester ii
1.Professional diagnostic for Toyota&Lexus
2.One year warranty
3.Top quality with good price
4.tester ii

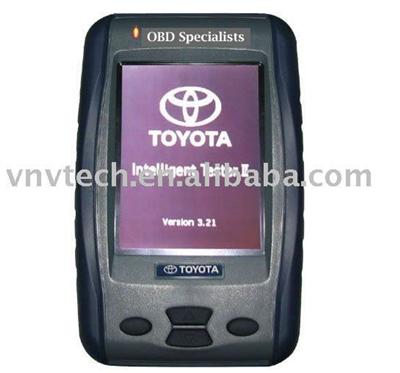

TOYOTA Tester II





Product Details
DENSO Diagnostic Tester-2 (DST-2) for TOYOTA & LEXUS enables you to diagnose electronic control systems for engines, ABS's and airbags, even through Communication Diagnosis DST- 2 realizes more accurate diagnosis through CAN communication that speed is 50 times faster than conventional.
Easy operation on LCD display with touch panel 5.7inch full color display with touch panel assists an easier operation. Voltmeter and Oscilloscope Not only communication basis diagnosis [Diagnostic code, ECU data monitor, Active test], but also voltmeter and oscilloscope detect alteration in the electric signal to find out the troubling part. Data recording to your PC saved data such as data-list can be downloaded to your PC.

DST-2 Main Unit Specification:
Dimensions: 145mm (W) x 223mm (H) x 71mm (D)
Weight: Approx. 1380g
Source Voltage: DC10-32V
Power Consumption Normal: 7W (12VDC), Charging: 10W (12VDC)
Operation Temperature: 0~45C
Storage Temperature: -10~60C
LCD display: 5.7 inch color STN (320x240), transparent type of 256 colors Adjustable brightness/contrast
Touch panel Input: by finger or stylus pen
Key: 4 (up, down, two function keys)
Built-in clock for a time stamp
PC Communication: PC card slot CFx1ch (CF standard type I, II)
USB Host: 1ch.

Function: 1ch Serial 1ch (RS-232C) Vehicle communication CAN, ISO9141
Back up power supply: Lithium-ion battery 7.4v 1000mAH Recharge hour ( at normal temperature) Approximate operating time: 5 hours ( fully discharge to full charge) 80 minutes (normal operation) Voltage Measurement Function Items Specification Maximum sampling rate 250s c Input channel 1ch Voltage range ( vertical scale) 1V/div, 2V/div, 5V / div Time range ( horizontal scale) 100ms / div, 200ms / div, 10s / div Oscilloscope Function Items Specification Maximum sampling rate 500ks c Input channel 2ch Trigger functions Mode Auto, normal, single Trigger 10%, 50%, and 90% of the monitor Voltage range ( vertical scale) 100mV / div, 200mV / div, 500mV / div ~10V / div Time range ( horizontal scale) 5us / div, 100us / div, 200us / div, ~10s / div( 200ms and higher is the Roll mode)

Package List:
- Mainframe -- 1pc
-OBD-II -- 1pc
-Charging line -- 1pc
-Lin line -- 1pc
-Measuring leads for multimeter 1 -- 1pc
- Measuring leads for multimeter 2 -- 1pc

Update and Warranty:
- Update for free for one year by sending CD.
- One Year Warranty
