Quick Details

• Voltage:

  12v

• Place of Origin:

  China

• OE Experience:

  No

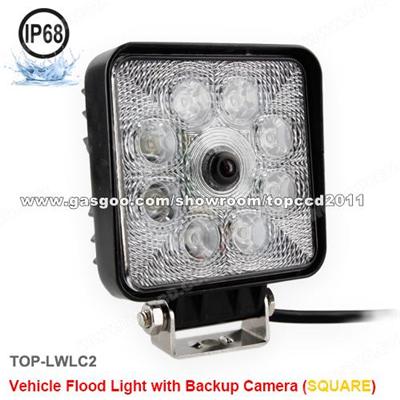

Product Name:LED Work Lamps With Integrated Camera (Square) (TOP-LWLC2)

LED Work Lamps With Integrated Camera (Square) (TOP-LWLC2)

Application

Universal

Product Description:

. Product: Vehicle Flood Light with Backup Camera
. Car Brand: Universal
. Applications: On-road applications, 4WDs, SUVs, light trucks, utility vehicles, delivery trucks,Forklift, Agriculture, Tractor shovel,garbage trucks.....etc
. Illuminates area while simultaneously relaying video
. Embedded video camera in fixture
. Short-shield blocks glare from camera lens
. Professional manufacture high-quality aluminum housing
. Waterproof, dust-proof, rustproof, it can be used in rain or bad environment
. Stainless Steel Bracket, good quality and easy mounting
. Round or square shape available

  Camera Specs:
. Video signal: AHD 960P or CMOS
. Sensor: 1/3" CMOS Sensor,1280*960 Resolution (1.3 Megapixel)
                1/3" CMOS PC1058 chip,976x592 pixels (700TVL)
. TV System: NTSC / PAL
. Video System: Internal
. Lens: 1.7mm
. Diagonal Angle: 140°
. Horizontal Angle: 107°
. Vertical Angle: 84°
. Minimum Illumination: 0 Lux (LED ON)
. Night Vision Distance: 98 ft. - 164 ft.
. Output Signal Amp: 1.0 Vpp 75 ohm
. Signal to Noise Ratio: 48db or better
. White Balance: Auto
. Gain Control: Auto
. Backlight Compensation: Auto
. Electronic Shutter: Auto
. Cable jack: 4PIN Female
. Image: Mirror / non-Mirror (Default Mirror image)
. Normal/Reverse Switch: Yes
. Parking Lines: Selectable
. Suit for front view/side view/rear view position installation

  Flood Light Specs:
. Lumen: 1154 Lm
. LED Power: 24W
. LED Type: 8 x 3W LED's
. Infa-Red LED: 8 White Lights
. Color Temperature: 6000 K
. Opitonal Beam: 60 Degree Flood Light
. Night Vision Distance: 98 - 164 feet
. Waterproof Rating: IP68
. Product Color: Black
. Material: Die cast aluminum housing, 304 Stainless Steel Bracket
. Lens Material: Polycarbonate
. Power Voltage: 12V
. Voltage Consumption: Daylight (60 mA),Darkness (2400 mA)
. Operating Temperature-20~+70

  Package is complete with:
  1 x Vehicle Flood Light with Backup Camera
  1 x Screw Kit for installation
