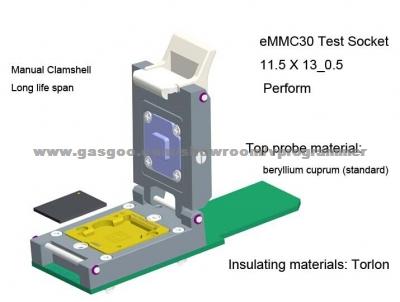

Product Name:EMMC30 Test Socket Adapters EMMC / Nand Chips Test Adapters

EMMC30 Test Socket Adapters EMMC / Nand Chips Test Adapters

Application

Sireda eMMC30 Test Socket Adapters is eMMC / Nand chips readers, it enables fast reas of eMMC chips in the same versatile and easy-to-use SD Adapter format, here, we offer Five kinds eMMC30 Test Socket for eMMC / Nand Flash chips Testing.

Product Description:

OEM No/Model: VIP851

Sireda eMMC30 Test Socket Adapters is eMMC / Nand  chips readers, it enables fast reas of eMMC chips in the same versatile and easy-to-use SD Adapter format,  here, we offer Five kinds eMMC30 Test Socket for eMMC / Nand Flash chips Testing.

eMMC30 Test Socket Adapters eMMC / Nand  chips Test Adapters

optional 1: eMMC30 Test Socket_11.5 X 13_0.5 with SD Adapter (compatible 153 and 169)

optional 2:  eMMC30 Test Socket_12 X 16 _0.5 with SD Adapter (compatible 153 and 169)

optional 3:  eMMC30 Test Socket_12 X 18 _0.5 with SD Adapter (compatible 153 and 169)

optional 4:  eMMC30 Test Socket_14 X 18_0.5 with SD Adapter (compatible 153 and 169)

optional 5: eMMC30 Test Socket_11 X 10 _0.5 with SD Adapter (compatible 153 and 169)



Features:


• Manual Clamshell, easy to operate
• Top probe material: Beryllium cuprum
• Insulating material: torlon
• The special head of the probe can stab the oxidation layer of the solder, contact safely and will not damage the solder ball
• Pressure adjustable, make sure pressure could be applied evenly on ic
• Accurate positioning of IC, higher efficiency
• Probe is replaceable, Frame guide is changeable, easy maintenance and low cost
• Long life span (5000 times-mechanical), stable performance
• Hight frequency and high efficiency
• Offer customization service

Note:

1. "11.5x13" means the size of the chip, Pitch : 0.5mm, Test Pin:30

2.  All sockets suppot ball and non-ball testing.

3.  Support differet IC thickness (0.8 - 1.5mm)

eMMC 153 / eMMC 169 test Socket With SD Adapter Compatible With BGA153 and BGA169. Apply to Samsung, Hynix, Sandisk, Toshiba, Intel etc. Reading and Accessing The data of eMMC Flash chip,  it is eMMC Reading and Tesing Solution-eMMC Socket With SD Adapter.
