Features

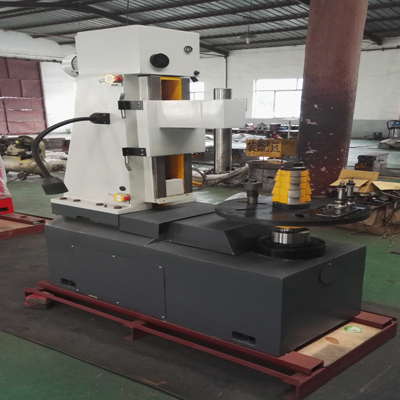

This machine is applicable for boring, repairing, machining, producing brake drum, brake shoe of vehicles & tractors, it is with features as below:
1. High rigidity. The thickness of chassis is 450mm, which is integrated with transmission system & stand, so the rigidity is strengthened.
2. Wide machining range. This model is with very big machining diameter among all the brake drum boring machines in china.
3.Perfect operation system. The quick up/down & positive/negative feed increases the working efficiency and the integrated button station achieves convenient operation.
4.Applicable for widel car types. It can machine not only brake drums & brake shoes of Jiefang, Dongfeng, Yellow River, Yuejin, Beijing130, Steyr, Hongyan etc.,but also the followings: Zhongmei Axle, York Axle, Kuanfu Axle, Fuhua Axle, Anhui Axle.
Specification
Main Specifications |
T8380 |
Range of Processing Diameter mm | 180-800 |
Rotating Speed of Workpiece r/min | 24 / 45 / 80 |
Working Travel of Slideboard mm | 450 |
Overall Dimensions mm(L x W x H) | 940*600*1415 |
Packing Dimensions mm(L x W x H) | 1200*1050*1630 |
N.W/G.W kg | 1200 / 1350 |
Motor Power kw | 3 |
