Quick Details

• Material:

  Gray Iron

• Size:

  410*410*238mm

• Weight:

  60kg

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  neaotiated

• Delivery Time:

  40 For OEM, Days For Stock

• Packing:

  Wood Pallet & Waterproof Membrane Or As Per The Customers Requirements

• Delivery Port:

  Wuhan

• Max. Production Capacity:

  20,000 Pcs Per Month

• Export Ratio:

  11% - 20%

• OE Experience:

  No

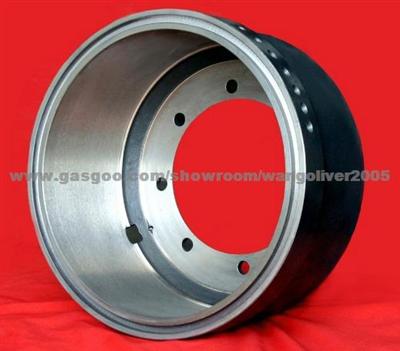

Product Name:Dongfeng Brake Drum

Dongfeng Brake Drum

Application

Dongfeng truck

Product Description:

OEM No/Model: 35N-01075
Application: Dongfeng/ DFA
OEM NO./Reference NO.  35N-01075
1. Component::
C  3.0%-3.4% Si  1.6%-2.2% Mn  0.6%-0.9% P  below 0.12% S  below 0.12% Cr   0.2%-0.6% Cu 0.4%-0.8%

2. Friction surface hardness value: HB170-241     Dynamic balance below  2000g.cm

3. Measurement Brake face dia.:400mm Over all depth:181mm Brake face m Hub pilot dia.:240mm Flange thickness:15mm Bolt circle dia.:285.75mm Dust shield recess dia.:427mm Overall dia.:457mm Bolt hole No.-Dia.: 10x22.5mm,

Package:
1.Qunatiy: 16 pcs per pallet
2.Package: wood Pallet ; waterproof membrane;reinforce the package with metal straps

Xiangyang Juxin Machinery Co., Ltd established in February 1998, located in Xiangyang City the main auto parts manufacturing base in China. The factory covers an area of 335,000 sqms, architecture area is 200,000 sqms, the fixed assets is RMB 300 million. The casting & forging output is 300,000 ...[Read More]

Company Profile:

• Main Product:

  Brake drum,barke hub,brake disc

• Business Type:

  Manufacturer

• Current Export Market:

  South America, Eastern Europe, Southeast Asia, Mid East, Oceania

• Total Annual Sales:

  USD 1,000,001 - 2,000,000

Factory Profile:

• Number of Employees:

  201 - 300 People

• Shift:

  2

• Size of Factory In Square Meters:

  200,000

• Years of OEM Experiences:

  9

• Certification:

  BBC

• Equipment Name:

  CNC vertical lathe, CNC machining center, Casting line, Iron based coated sand process, Sand blasting, Sand blasting

Research & Development:

• Capability for Synchronized Development:

  Develop according to drawing or samples provided by clients?Yes

  Develop 3-D model and prototype according to client's needs?Yes

• Lead Time for New Product Development:

  40days

• Tooling Design:

  Outsourcing or Cooperation

• Source of Tooling:

  Outsourcing

• Software/Profile:

  Catia , Others
