Product Name:S2430A Energy-Storage Spring Brake Chamber

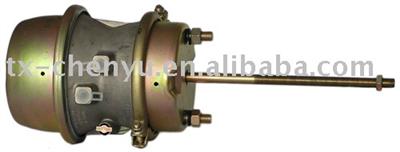

S2430A Energy-Storage Spring Brake Chamber

Application

Auto

Product Description:

S2430A Energy-Storage Spring Brake Chamber :

1) MODEL: CHY S2430A
2) Ref No.:B6157
3) TYPE:24/30
4) STROKE:75mm
5) ADMITTING PORT THREAD:M16×1.5
6) MOUNTING BOLT THREAD:M16×1.5
7) MOUNTING BOLT CENTRE:120.7±0.3
8) PUSH ROD THREAD:M16×1.5
9) PUSH ROD LENGTH:220mm
10) ADMITTING PORT ANGLE:90°
11) CLAMP ANGLE:45°
