Quick Details

• Display Size:

  7inch

• Place of Origin:

  Shenzhen

• Samples:

  Charge

• Delivery Time:

  7-15 Days

• Packing:

  Gift Carton Box

• Delivery Port:

  Shenzhen

• Max. Production Capacity:

  10000 Units/Month

• Export Ratio:

  61% - 70%

• OE Experience:

  No

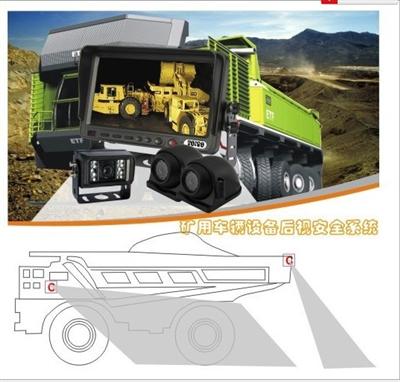

Product Name:Universal use Car Monitor

Universal use Car Monitor

Application

Universal use

Product Description:

Large car’s camera:
Image Type: 1/3 or 1/4 color sharp CCD
Horizontal Resolution: 560TV Lines
Usable illumination:  QLux(Built-in 6pcs IR LEDS)
Viewing Angle: 130
Waterproof Grade: IP66
Shockproof Grade: 10G
Video Output: 1.0Vp – P75?
Operating Temperature: -20 to +70 degree
Storage Temperature: -30 to +80 degree
Operating Voltage: DC 10-32V/1W (From Monitor)
Accessories: 15M Cable Auto Cigarette Lighter. Remote Control. User’s Guide
About the cameras, you can choose 1-4pcs according to your requirement. Quad monitor Function:
1. 7 inch digital color LCD Quad monitor with Touch screen. (pixel 800*480)
2. Be suitable for four cameras input on the same screen simultaneously.
3. Single, dual, triple, quad image and PIP functions available.
4. Once a trigger wire is activated, image automatically switches to its relative camera.
5. Image of monitor auto switched to the working channel.
6. After the trigger wire is activated, the time can be separately set up.
7. Camera’s name can be set up: 10 characters the longest.
8. The display effect, volume and mirror function for each camera can be separately set up.
9. Starting up mode can be set up with several or single image.
10. Audio input can be gained, sound can be adjusted.
11. The effect of LCD display menu can be adjusted.
12. Two language function, English and Chinese versions.
13. Easy installation and convenient operation, can switch to the working channel.
14. Output signal can be displayed which is more convenient to have video records and connect with display.
15. Screen brightness can be adjusted according to the outside brightness automatically.
16. Touch button and infrared remote control.
17. Operation power: 10-32V Push-button Operation:
Power menu up down left right mode
1. Power: Sleeping mode / working mode switch
2. Menu: Display Settings menu / turning menu / detect menu
3. UP: The setup menu is displayed, select the menu item.
When Rename page setup menu is displayed then remove the       cursor to the right select Character.
No menu displayed, switch to the camera diagram display screen.
4. Down: The set menu. Menu option under
       No menu displayed, switch to the camera diagram display screen.
5. Left: the setup menu is displayed, adjust the menu to the left
Without setup menu:
Short press: switch to diagram display screen
Press longer: adjust the sound volume to low
6. Right : the setup menu is displayed, adjust the menu to right
Without setup menu:
Short press: switch to diagram display screen
Press longer: adjust the sound volume to louder
7. Mode: switch to display several image.
Large Car's Monitoring System,7" Quad monitor with Reversing Vision Camera System for:
Logistics vehicle,Heavy Equipment Trucks Fork-lift, Trailer, Motor home,Harvester,Excavator,Large ships,Pier,
Mining vehicles,Agricultural machinery vehicles,Concrete mixer vehicles.
