Quick Details

• Support:

  DVD

• Screen Size:

  7inch

• G.W:

  2.5kg

• Video System:

  AUTO

• Touch Screen:

  Yes

• Product size:

  7inch

• Out Power:

  45w

• Color:

  Black

• Voltage:

  12v

• Power:

  60w

• Resolution:

  85dpi

• Lens Angle:

  120℃

• Minimum Illumination:

  100Lux

• Camera Resolution:

  1280*720

• Place of Origin:

  China

• Samples:

  Charge

• Sample Price:

  195

• Delivery Time:

  15DAY

• Packing:

  65.5*27*29.8 N.W 10.2KGS G.W 14.8KGS

• Delivery Port:

  Shenzhen

• Max. Production Capacity:

  100000

• Export Ratio:

  41% - 50%

• OE Experience:

  No

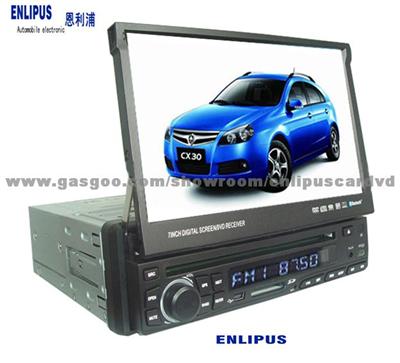

Product Name:Universal 1DIN Car DVD

Universal 1DIN Car DVD

Application

Andriod Universal Models

Product Description:

OEM No/Model: CID-1701
Manufacturer Specifications
·         Primary Function: 1-DIN 7 inch tilt swivel and detach touchscreen car dvd player with GPS and DVB-T
·         Main System Information
- RISC Microprocessor: Samsung 2440
- CPU: ARM920T
- Frequency: 400 MHz
- RAM Memory: 64 MB
- Internal Flash Memory: 64 MB
- External Memory (SD card support): up to 16GB (free 2GB SD card included)
- Default Baud Rate: 9600
- COM Port: 2
- Operating System: Microsoft Windows CE 5.0 (compatible with all major GPS software packages)
·         GPS Information
- Receiver Module: SiRF Star III
- Frequency: 1.575.42 GHZ
- C/A Code: 1.023 MHZ
- Signal Channels: 20
- Tracking Sensitivity: -159dBm
- Position Sensitivity: 10m, 2D RMS; 5m, 2D RMS , WAAS enable
- Speed Rate: 0.1m/s
- Data Update Rate: 1HZ
- Recapture Time: Average 0.1s
- Hot Startup Time: Average 1s
- Warm Startup Time: Average 30s
- Cold Startup Time: Average 38s
- Maximum Position Altitude: 18000M
- Maximum Speed Rate: 515m/s
- Built-in Antenna Type: External power source porcelain antenna
- Built-in Antenna Voltage: 3.3V±5%
- Built-in Antenna Current: 6mA
- Built-in Antenna Gain: 27dB
- Interface: Touch Screen
- GUI Interface: YES - 3D type
- Maps: via SD card
- Voice: YES
- GPS Menu Languages: English (United Kingdom), English (United States), Mandarin Putonghua Chinese, Cantonese Chinese, Taiwanese Chinese, German, French, Italian, Dutch, Spanish, Romanian, Portuguese (Portugal), Portuguese (Brazil), Swedish, Danish, Norwegian, Finnish, Czech, Greek (Actual voice and display language depends on the GPS software being used)
·         Discs (Region Zero, Region 0, Region-free DVD Player): DVD, CD, VCD, Super VCD, CD-R/RW, CD+R/RW, DVD-R/RW
·         Media Formats Supported:
- Video: DAT, AVI (DIVX3 codec), AVI (DIVX5 codec), DIVX5, MPEG 1/2, VOB, AVI (XVID codec), MP4 (XVID codec)
- Audio: AAC, MP3, WMA
- Picture: JPEG
·         DVB-T Information
- Digital TV receiving standard: MPEG-2
·         External Memory
- USB Drive: YES (max 16GB)
- SD Card: YES (max 16GB)
·         Operation: Resistive Touch Screen (with finger or included stylus) or Remote Control
·         Display Information
- Screen: 7 Inch TFT LCD
- Resolution: 800 x 480
- Tilt angle: 0-100 degrees (button activated motorized tilt)
- Swivel angle: 0-30 degrees on either side (button activated motorized swivel)
- Video Systems: PAL, NTSC, AUTO
·         Audio Information
- Max Audio Output: 60W x 4
- Signal-To-Noise Ratio (SNR): >85dB
- User adjustable EQ: Bass, Treble, Balance, and Fade
·         AM/FM Radio Tuner Information
- AM Frequency Range: 522~1710KHz (Worldwide)
- FM Tuning Range: 87.5~108.0MHz (Worldwide)
- RDS System: YES
·         Bluetooth Information
- Pair with mobile phone - then use touchscreen interface
- Dial, Answer, Disconnect
- Call History
- Volume Control
- Touchscreen Keypad
·         Steering Wheel Control Information
-KEY1 5V
-KEY2 5V
-Ground
·         Media Inputs
- GPS card slot (behind detachable control panel)
- SD/MMC card slot (behind detachable control panel)
- DVD/CD disc slot (behind detachable control panel)
- GPS Antenna port (unit rear)
-DVB-T Antenna port (unit rear)
- Mini USB input (unit rear )
·         Controls When Screen Recessed
- EQ/AF
- Loud / TA
- Open/Close
- Panel Tilt Angle Control
- Reset (Behind Detachable Panel)
·         Screen Panel Controls
- Panel Swivel Left/Right
- Main Menu
·         Detachable Panel Controls
- Volume Control/Mute (Short Press)
- Power ON/OFF
- Mode Button
- Remote Control Sensor
- LCD Display
- GPS Navigation
- Eject
- Microphone
- Multifunction Button
- Detach Panel
·         Primary AV Cables / Wires
- IPOD input
- USB input
- GPS antenna input
- DVB-T antenna input
- Radio antenna input
- RCA Audio OUT x2 (front L and R)
- RCA Audio OUT x2 (rear L and R)
- Aux-L IN
- Aux-R IN
- Subwoofer
- Video IN
- Video OUT x2
- Camera IN
- Left Front Speaker x2
- Right Front Speaker x2
- Left Rear Speaker x2
- Right Rear Speaker x2
