Quick Details

• Video Systems:

  PAL

• Samples:

  Charge

• Delivery Time:

  25DAYS

• Max. Production Capacity:

  10000pcs/M

• Export Ratio:

  51% - 60%

• OE Experience:

  No

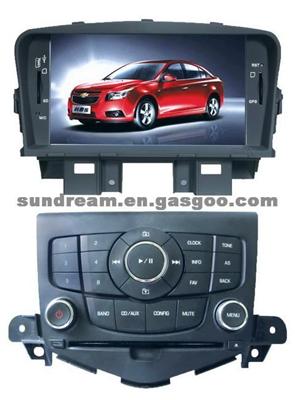

Product Name:Car Dvd for Buick

Car Dvd for Buick

Application

Buick, Chery, chevolet, Citroen, Ford, GMC, Honda, Hyundai, Kia, Mazda, Mitsubishi, Nissan, Peugeot, Skoda, Suzuki, Toyota, Toyota, volkswagen, VW

Product Description:

Car Multimedia Main Features
Dynamic IPHONE menu
Operating system WINCE 6.0
16:9 HD TFT LCD 800*480 pixel
GPS navigation system
DVD player
Bluetooth
IPOD connection
FM/AM digital radio
CD Changer
Dual-Zone working
Built-in PAL/SECAM/NTSC TV tuner (Option)
Built-in DVBT/ISDB/ATSC TV tuner (Option)
Steering wheel control function
Support rearview camera
Support CANBUSsystem
Display A/C Info(For XDB2700)
Supportparking sensor/radar(For XDB2700)
Electronic & Mechanical Anti-shock
AUX in, AV-in & AV-out
Customized Wall paper & startup screen logo

Detailed Specifications
Operating System
WINCE 6.0
Language : Italian, Dutch, Chinese, English, Spanish, French, Czech, Vietnam, Portuguese, Russian, Turkish, Arabicect.
GPS Specifications
GPS chipset SiRF ATLAS IV ARM11
Main frequency : 500Mhz
Support maps : Garmin, Tom Tom, Route66, Sygic, Igo...ect
Baud Rate 9600, Port COM1
GPS antenna frequency 1575.52MHZ
RAM Memory : 128MB DDR-I
Flash Memory : 256MB
Adopt uBlox 20ways High sensitivity GPS receiver module
Positioning sensitivity : Reach-158dBm
Positioning accuracy : <10m,
Cold start positioning time : 34 ~ 41s
Warm start positioning time : 33s,
Hot start positioning time : <3.5s
Working temp. : -30 ~ +70 Celsius
DVD Player
HITACHI Optical Head
DVD Pick-up: HOP-1200W-BHITACHI 12MM
Support (12cm disc): DVD,VCD,CD-R,CD-RW,MP3,MP4, DIVX, WMA/JPEG.
Noise standard
Playback: 50dB (A) or less;
Search: 60dB (A) or less;
Loading / Ejecting: 70dB (A) or less;
Operation temp. : -10 ~ +60 Celsius
FM/AM Tuner
FM range: 87-108MHZ
SensitivityS/N 30DB: 15dBu
Noise Ratio : 50db
Impedance: 75 Ohm
AM range : 522-1620KHZ
Noise limit of sensitivity (S/N 20DB) : 35dBu
Noise ratio : 40db
Antenna Impedance : 75Ohm
30 channel preset
TV Tuner (Option)
Built-in PAL/SECAM/NTSC TV tuner
Built-in DVBT/ISDB/ATSC TV tuner
Working Limit Temp.: -30 - +85 Celsius
Operation Temp. : -20 - +65 Celsius
BLUETOOTH / IPOD
Standard: Bluetooth2.0, Class II
Frequency Band: 2.4-2.48GHZ
A2DP, Hand-free set
Modulation Method: GFSK, 1Mbps, 0.5BT Gaussian
Operation Range: 10 meters
Sensitivity:-80dBm 0.1%BER
Operation Temp.: -40 - +85 Celsius
AV Input & Output
Input : 1 * video, 2 * audio
Output : 2 * video, 4 * audio
Max. amplifier output 4 * 45W
USB Port & SD Slot
USB support maximum 128G (for media)
SD support maximum 8G (2 SD slot for GPS and media)
Dual Zone Working
Listen Radio/DVD while GPS navigating
Accessories
User manual, GPS antenna, TV antenna (option), IPOD wire, USB wire, RCA wire, ISO wire harness, Stylus
Other Features
PuzzleGames, Photo browser, Calculator, E-book readerect.
