Quick Details

• G.W:

  11kg

• Video Systems:

  PAL

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Delivery Port:

  Shenzhen

• OE Experience:

  No

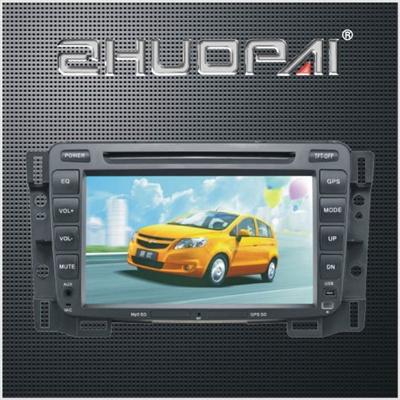

Product Name:7" Special car DVD for CHEVROLET NEW SAIL

7" Special car DVD for CHEVROLET NEW SAIL

Application

CHEVROLET NEW SAIL

Product Description:

- 7"special car dvd player with GPS,bluetooth, radio,TV
-Supports steering wheel control function
- RDS,CDC,iPods,bluetooth

7" special car dvd player

Main Features:

- All-in-One 7" two-din car DVD player/GPS special for CHEVROLET NEW SAIL

- 7" brand-new digital LCD panel, resolution: 800 x 480 pixels
- Compatible with DVD/VCD/CD/WMA/MP3/MP4(AVI)/CD-R/CD-RW/DVD-R/DVD-RW
- Slot-in disc loading
- Electronic & mechanical double anti-shock system
- Built-in GPS navigation function, 3D interface for easier operation(optional)
- Bluetooth wireless handsfree function, supports calling record and phone book
- Bluetooth music: supports playing music of mobile phone to car speakers through bluetooth
- With USB port and SD card slot (Supports MP4/AVI/MP3/ WMA/JPEG playback)
- key-press,remote control and touch-screen operation
- AUX-in function
- 2-way AUDIO(STEREO) + VIDEO(CVBS) output
- Supports video signal input from rearview camera
- Supports steering wheel control function
- Analog PAL/NTSC/SECAM TV:  pre-store 80 TV channels (optional)
- ISDB-T/DVB-T digital TV (optional)
- AM/FM radio, pre-setting 30 stations and programs
- Supports external iPod connection (optional)
- Supports external multi-disc CDC function  (optional)
- Supports with RDS function (optional)

Detailed Specifications

System parameters

Working voltage

DC 11V-14V

Working current

MAX 10A

Standby current

Power-off standby: 25 mA ; ACC-off standby: 8mA

Video system

Automatic PAL/NTSC

GPS specifications

Operation system

WINCE 6.0

Support map

Garmin, Tomtom, IGO, Route 66 etc

Processor

SAMSUNG high performance processor S3C2440A-40

EMS memory

32MB SDRAM

Storage device

128MB

Display output

CVBS output

Audio output

Stereo CD Quality

Support audio type

MP3/PCM/WMA

Support video type

ASF/AVI/WMV/DIVX

Chipset

SIRF STAR 3

Frequency

1.575GHz

Channel number

20 channels

Tracking sensitivity

-159dbm

Position accuracy

10m, 2D RMS, WAAS enable

Velocity

0.1m/s

Data renewal rate

1Hz

Re-catching time

Average 0.1s

Hot start time

Average 1s

Warm start time

Average 38s

Cold start time

Average 42s

The biggest fixed height

18000m

The biggest velocity

515m/s

Power specification

DV 12V, current<500mA

Power Consumption

4.5W(12V/360mA), normal 3W(12V/250mA)

DVD parameters

Video output range

1+10.2Vp-p(75Ω)

Disc spec

Siameter 12cm disc

Compatible disc

DVD/VCD/CD/WMA/MP3/MP4(AVI)/CD-R/CD-RW/DVD-R/DVD-RW

Amplifier parameters

Testing voltage

13.8V

Maximum power output

4×50W

Speaker impedance

8Ω (4-8Ω acceptable)

Audio parameters

Track imbalance degree

≤2dB

Segregation degree

≥45dB

Frequency response

20Hz-20KHz (±3dB)

Volume adjustment

Low 100Hz±7dB

Medium 1KHz±7dB

High 10KHz±7dB

Radio parameters

FM/AM frequency

FM: 87.5MHz-108MHZ

AM: 522KHz-1620KHz

Tune method

PLL frequency complex tune

Display method

TFT Graphical User Interface OSD

Storage quantity

FM radio: 18channels

AM radio: 12channels

Search method

Automatic/manual

Packing details:

- N.W.: 2.5kg
- Giftbox size: 340 x 301 x 170mm
- Carton size: 625 x 352 x 364mm
- Qty/ctn: 4pcs
- G.W.: 11.0kg
