Quick Details

• Combination:

  GPS

• Certification:

  CE

• Voltage:

  12v

• Core Components:

  SAMSUNG 2440/ARM11

• Main Raw Material:

  Sirf 3

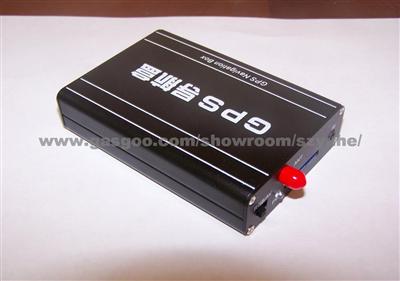

Product Name:GPS Navigation System GPS-BOX

GPS Navigation System GPS-BOX

Product Description:

Software Compile Type: ARM11
when you send inquiry to us,please add your e-mail address
Display Differentiate Rate: 480*234/800*480
Audio Output: Double Channels CD Tone
Audio Power: Earphone double channels 0.25W/CHANNEL, Single Channel 8 Ohm/1W
Average Power consumption: 1.5W
Standby Power Consumption: <20mW
Chipset: SiRF Star III
Frequency: 1.575GHz
C/A CODE: 1.023 MHz chip rate
Channels: 20
Tracking Sensitivity: -159dBm
Orientation precision:
10m, 2D RMS
5m, 2D RMS, WAAS enable
Speed: 0.1m/s
Data Updating Rate: 1Hz Reacquisition: Average 0.1s
Hot Start: Average 1s
Warm Start: Average 38s
Cold Start: Average 42s
Maximum localize height: 18, 000m
Maximum Speed: 515m/s
Acceleration: < 4g
External Antenna connector: MMCX
External Antenna Plus: 27dB
External Antenna Current: 15mACar Navigation;
OS: WinCE net 5.0
NTSC or PAL output to LCD monitor
Supports AV diagonal RGB output
Map feature including road routing calculation, automatic re-routing, voice navigation guidance, automatic map rotation...etc.
Display: NTSC or PAL
Dual-channel stereo audio
SD card store
Expanded memory: Supports SD Card
IR receiver for remote controller
Main Frequency400MHz/500MHZ
Main Chip modelSAMSUNG S3C2440A-40/ARM11
Memory 64MB/128M
Storage Space: 64MB/128M
Navigation Software Storage: SD card
Platform: WINCE 5.0/6.0
