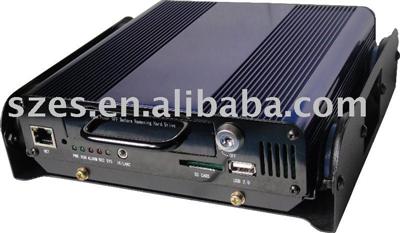

Product Name:Dvr car 100fps(PAL)/120fps(NTSC)

Dvr car 100fps(PAL)/120fps(NTSC)

Application

AUTO

Product Description:

*dvr car
*High Definition, 100fps(PAL)/120fps(NTSC)
*H.264 High Profile Technology
*Plenty of experience in Custom-design

dvr car (MDR5015, MDR5025, MDR5045) with highlight features as below:

* Advanced H.264 High Profile technology for video compression at lower bitrate.
* Higher video resolution for each channel, NTSC: D1, 704 x 480 / PAL:  D1, 704 x 576.
* Stable recording. Use SATA 2.5" Hard Drive and SD card for storage.
* Standard AVI file format and FAT32 file system, compatible with third party player.
* Reliable power management, wide voltage: +8VDC~+40VDC.
* Multiple way for convenient and fast file searching by date/time with user friendly interface.
* Compact size & lightweight for easy installation.

Other key features:

1- High video quality based on H.264 High Profile technology for video compression.

2- High resolution recording, up to mega-pixel for 4 channel(1280x1024) and D1 resolution for 1 channel(PAL: 704x576 / NTSC: 720x480).

3- Compact size, much easier for installation.

4- Support from 8VDC to 40VDC, applicable for 12VDC and 24DC vehicles.

5- The recorder provides each camera with stable +12V DC power; DVR can detect the short cut on power circuit.

6- Can use ignition to control the power. Configuable power timer after ignition is off.

7- Automatic, Event Trigger, Schedule or Motion Recording options.

8- Can record speed with audio and video. Support overspeed alarm.

9- Support 3 sensors, can record brake, return, right turn, left turn light status into the record file.

10- Use avi format for record file. Compatiable with different player software.

11- Support FAT32 file system, record file can be read directly on Windows, Linux.

12- USB Port connect thumb Drive / External HDD storage.

13- External GPS allows for vehicle tracking and location recording in video field.

14- Motion detection and the sensitivity can be adjusted.

15- Date and time stamp records onto footage.

SPECIFICATION

ITEM

MDR5015

MDR5025

MDR5045

VIDEO

VIDEO INPUT

1 channel

2 channels

4 channels

VIDEO OUTPUT

1 channel, 1.0V, p-p, 75Ω, BNC

VIDEO FORMAT

Support PAL/NTSC

VIDEO COMPRESSION

H.264 High Profile

RECORD RESOLUTION

704x576(PAL)/

704x480(NTSC)

1280x512(PAL)/

1248x416(NTSC)

1280x1024(PAL)/

1248x832(NTSC)

FRAME RATE

25fps(PAL),

30fps(NTSC)

50fps(PAL),

60fps(NTSC)

100fps(PAL),

120fps(NTSC)

VIDEO BITRATE

660Kbps ~ 1.5Mbps,

4 level video quality

1.32Mbps ~ 3Mbps,

4 level video quality

1.98Mbps ~ 4.5Mbps,

4 level video quality

AUDIO

AUDIO INPUT

1 channel

2 channels

4 channels

AUDIO INPUT FORMAT

20KΩ, RCA

AUDIO OUTPUT

1 channel, 500Ω, RCA

AUDIO LEVEL

1V ~2V, p-p

AUDIO COMPRESSION

G.711

STORAGE

STORAGE

Hard drive, SD card, external USB device (memory stick or hard drive)

FILE FORMAT

AVI

INTERFACE

SENSORS

1 speed sensor, 1 ignition sensor, 3 sensors for brake, return etc.

COM PORT

2 RS232 port, 1 RS485 port

NETWORK

RJ45, 10M/100M Ethernet

GPS

Support GPS receiver(optional), can record GPS information along with video and audio. GPS data format: NEMA0183, Baudrate: 4800bps

SOFTWARE

PLAYER

Specially designed player for the DVR

THIRD PARTY SOFTWARE

Windows Media Player(Ver 11.0 or above), VLC Media Player(Ver1.0.0 or above)

POWER

INPUT POWER

From +8VDC to +40VDC

POWER OUTPUT

DC, +12V/1.5A, +5V/1A

POWER COMSUMPTION

Working power: <5W, Strand by power: 0.1W (exclude camera, hard drive, monitor)

OTHER

WORKING TEMPRETURE

From -10 Celsius degree ~ +60 Celsius degree

SIZE

180mm x 180mm x 42mm

WEIGHT

1.8kgs
