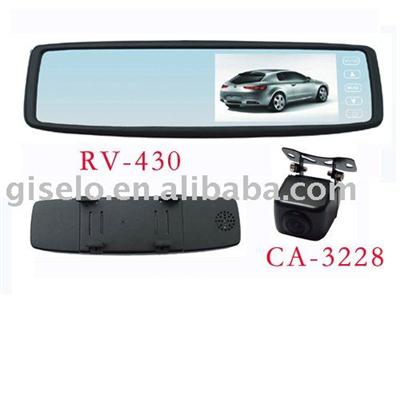

4.3 inch Car Rearview Mirror LCD Monitor with camera back view parking sensor with camera
Model:RV4303228
Car original rear view mirror monitor with car camera
Specifications
[Screen Sizs]:4:3
[Display Screen]:TFT-LCD
[display Resolution]:480(H)*RGB*272(V)
[Aspect Ratio]:16:9
[Power Supply]:<2W
[Power Supply]:DC12V
[Video Input]:AV1 to VCD/DVD(defaulted),AV2 to backup camera.
[Signal Syslem]:PAL/AUTO/NTSC
[Brightness]:250cd/m2
[Contrasl Ratil]:300:1
Prodrct Features:
1.TFT-LCD dispaly for DVD/VCD .player
2.Special anti-glaring glasses for eye sight protetion,in position of the original rearview mirror
3.Automatically switch to rear view system when reversing,ensure to parking safely.
4.Touch screen button control
5.Can connect to VCD/DVD/TV/GPS and etc.video input device.
6.Easy for installation and uninstallation
7.replace the original car mirror(provide different car mirror base)
car camera:
Image Sensor: OV7950
Effective Pixels: NTSC: 656×492
Protection Category: IP67-IP68
Signal System: NTSC
Resolution: 420 TV Lines
Shutter Speed: 1/50-60~1/15000 second
S/N Ratio: ≥48db
Minimum Illumination: <0.2Lux
Video Output: 1.0Vp-p, 75 OHM
Power Supply: DC12V ± 20%
Current Consumption: Max. 70mA
Operating Temperature: -20 ~ 65
Lens Angle: 170o
Reversing Guard line: Available
Waterproof, antishock
Guard line function available and can be shut down by installer.
Auto Switching When Reverse:
1.Under power-on condition:When reverse gear is engaged,the system automatically switches from DVD/VCD video to backup camera video,and when parking is completed,it switches back automatically.
2.Under power-off condition:When reverse gear is engaged,the system automatically starts on to find the camera signal and display backup video.When parking is completed,it switches off automatically.
Original install bracket:
Toyota Camry,Prado,Crown,Reiz,Buick Regal,GL8,Mondeo,Focus,Mazada 6,Honda Accord,Odyssey,Galand,GM HRV,Lova,Tiida,Tenna,CRV,Passat Bora,MFI,Audi,Skoda,Jetta,Epica,Chery 06,Sonata,Elantra,Honda City,Mitsubishi Grandis.
