Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  Packing info:1 pc/color box 50 pcs/cartonG.W:11.5 kgs Meas: 42*28*40cm

• Delivery Port:

  Shenzhen ,China

• OE Experience:

  No

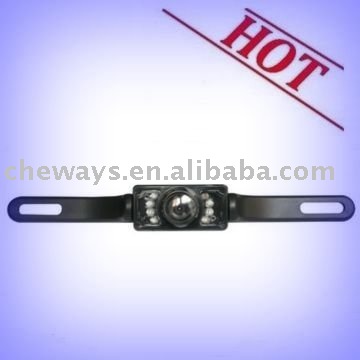

Product Name:night vision car camera, car camera ,135 degree

night vision car camera, car camera ,135 degree

Application

Auto

Product Description:

car camera
size: 19 * 33 mm
lens angle:135 degree
image sensor: OV7949/OV7950

waterproof car rearview camera C-322

?

Main feartures:

n.w: 0.042kg???????????????????????????????????

size:??19 *?33 mm?????????????????????

lens Angle:135 °?????????????????

image sensor:?OV7949/OV7950?????????

TV system: PAL/NTSC?????????????????????????

waterproof: IP68????? ????????????????

resolution: 420 TV Lines?????????????????????

power supply: DC 12V??????????????????????

effective pixels: Pal-512*582 ; NTSC-656*492

?

Packing info:

1 pc/color box?

50 pcs/carton

G.W:11.5 kgs?? ?????

Meas: 42*28*40cm

?

?

OV7949

Image device: OV7949

TV system:PAL/NTSC

Effective pixels: 628*586, 510*496 pixels

Sensing area: 5.961 mm *4.276 mm

Video output: 1.0 VP-P,75 OHM

Gamma consumption: 0.45

Scanning system: 2:1 interlace

Lens angle: 135°

Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)

Resolution: 420 TV lines

Operation temperature:-20°C - 75°C,RH 95% MAX

?Shutter speed: 1/50-12.5μs, 1/60-12μs

?White balance:auto?

Waterproof: IP67/68

Power supply: DC 12V

Storage temperature:-40°C - 85°C,RH 95% MAX

?

?

OV7950(CMD)

Image device: OV7950

?TV system: NTSC

Effective pixels: 656×492 pixels

?Sensing area: 4.08 mm *3.12 mm

Video output: 1.0 VP-P,75 OHM

?Gamma consumption:0.45

?Scanning system:2:1interlace

?Lens angle:135°

?Minimum illumination: 0.1 Lux/F=1.2(0 Lux with IR on)

?Resolution:420 TV lines

?Operation temperature:-20°C - 75°C,RH 95% MAX

?Shutter speed: 1/60-1/20000

?White balance:auto?

?Waterproof:IP67/68

?Power supply:DC 12V

?Storage temperature: -40°C - 85°C,RH 95% MAX

?
