Quick Details

• G.W:

  18kg

• Video Systems:

  PAL

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Delivery Port:

  shenzhen.guangzhou

• OE Experience:

  No

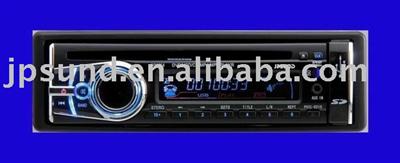

Product Name:Car Dvd Player with Usb Sd Detachable Panel 1 Channel Video Output \ 2 Channel Circuit Output

Car Dvd Player with Usb Sd Detachable Panel 1 Channel Video Output \ 2 Channel Circuit Output

Application

Auto

Product Description:

suppport DVD/VCD/CD/MP3/MP4,Player format:CD-R/CD-RW/DIVX/AVI/3GP/MOV/WMA
hitachi 1200W-B.Tuner
SUNPLUS SPHE -8202TQ decoder

1) Detachable panel

 2) USB/SD card slot (SD card and USB flash disk are not included)

3) DVD / DIVX / DVD-R /DVD-RW / VCD / CD/ MP3 / MP4 / CD-R / RW / AVI / 3GP / MOV

4) Aux-in line (at the back of the machine; Can connect  MP3 player etc.)

5) AM/FM radio(30 stations preset)

6) 1 channel video output  \2 channel circuit output

7) 2 channel audio output

8) Electronic volume control(treble,bass,balance,fader)

9) Auto memory

10)EQ(POP-ROCK-CLASSIC-JASS)

11) 4x52w output

12) ESP(machine and electron anti-shock)

13) Working voltage:10.5V-13.8V

14) Universal size; 1 din(178x50x168mm)

15) Telephone mute

16) Digital Clock

17) Video system:Auto/PAL

18) Support folder format

19) Night illumination

Technical parameters:

Loader                              WUXIANG,SHENQIUDA,AISHANG

Decoder                            SUNPLUS SPHE-8202TQ

Tuner                                HITACHI 1200W-B

Mainboard                         Integrative Single Board

Panel                                full detachable

Display screen                  LCD

Radio Head                       High sensitivity 4730

Amplifier Chipset               TDA7388

Temperature Scope            -10°C~70°C

Output Connector              Worldwide Standard 5 RCA

Video output                      1 channel video output

audio output                      2 channels audio output

Circuit output                     1 channel circuit output

Working Voltage                10.5V-13.8V

DC MAX                            7A

Audio:

Supports four kinds of EQ sound effect: POP, ROCK, CLASS,.JASS, EQ OFF

Support loudness control: enhance high and low frequency sound when at low volume

Support Bass (Bass), Treble (Treble) adjustment:-7db ~ +7 db

Support around (Balance), before and after (Fader) adjustment:-10db ~ +10 db

Support the push button’s tone switch

Support 4-way RCA output, an external amplifier

Channel  audio input:AUX IN

Radio:

High quality digital FM / AM tuner, enables to search the global band platform (Europe, Japan, America, Russia)

AM/FM tuner, Save 18 FM stations+12 AM stations

Powerful search capabilities, can be semi-automatic station search, automatic channel search, automatic browsing Radio

Stereo/Mono switch

Remote / short-range channel search Switch

Other features:

 If you want to change the item into CD player, we can produce it for you.

Accessories:

One English manual

One card size controller

Necessary power line

Packing:

One color gift box

Gift box: 27.3 X 21.5 X 8.1  cm

Carton:45.5*44.5*29.5 cm

Packing:10pcs/carton

N.W.:17KG / Carton

G.W.;18KG / Carton
