Quick Details

• Place of Origin:

  China

• Delivery Port:

  GUANGZHOU

• OE Experience:

  No

Product Name:4.5

4.5

Application

Universal

Product Description:

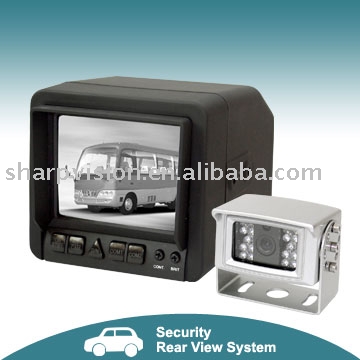

4.5" B/W CRT Rear View System with Built-in 2 cameras and 1 VCD video switch
,Wide voltage input: DC 11V~32V,CRT monitor

Features
 4.5-inch high resolution CRT
 Wide voltage input: DC 11V~32V
 Built-in 2 cameras and 1 VCD video switch
 Normal/Mirror image switch
 Manual/Auto switch, system turn into standby mode when in automobile mode
 Camera/VCD input switch, compatible with reversing and VCD signal
 Camera input signal automatically switch when reversing
 Video input / output port
 Double-sided PCB board for efficiently increasing anti-vibration ability(8G)
Crust made by special technique, with favorable touch and top grade appearance
2 background color of panel buttons(blue and red)
 Light-touch switch control
Motormeter light control LED to achieve displaying step status
 Day / Night lightness option
 Contrast and brightness adjustment

4.5 B/W REAR VIEW SYSTEM
MONITOR
Display Device: 4.5 CRT
Deflection Angle: 90°
Input Voltage: 11~32V (DC)
Output Voltage: 10.2V±0.2V (DC)
Power Consumption: <=11W
Video Input: 1.0Vp-p±20%
Video Output: 1.0Vp-p±20%
Operating Temperature: -20~+60
Horizontal Resolution: 600 TV Lines
Field Resolution: 400 TV Lines
Horizontal / Vertical Sync Resolution: CCIR, 15.625kHz (H) / 50 (V)
EIA, 15.734kHz(H) / 60Hz(V)
Anti-vibration Capability: 8G
Camera Port: DIN Socket
A/V Port: RCA Socket
Dimensions: 160mm(L)*127mm(W)*117mm(H) without bracket
Weight: 3.2kg
