Quick Details

• Place of Origin:

  Guangdong, China (Mainland)

• Delivery Time:

  0

• Packing:

  Carton, flight case

• Delivery Port:

  Guangzhou

• OE Experience:

  No

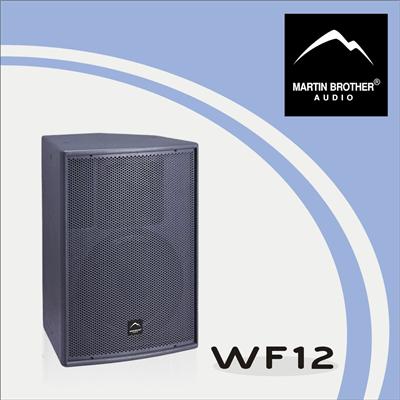

Product Name:Wavefront Series Loudspeaker WF12

Wavefront Series Loudspeaker WF12

Application

Wavefront Series

Product Description:

WF12 is a versatile, two-way passive loudspeaker system. one 12'' LFdriver and one 1'' HF compression driver .It is a pa speaker

Pro Audio / pro speaker / pa speaker / loudspeaker / speaker / pa speaker / audio / audio equipment / stage speaker / pro sound / sound box / pa system

The Wavefront Series WF12 is a versatile, two-way passive system designed for applications where high output is required from an ultra-compact enclosure. It features a long-excursion, 12'' (300mm) low frequency driver and a 1'' (25mm) HF compression driver mounted on a constant directivity 80°x  50° horn. The horn is user rotatable to allow the WF12's multi-angle enclosure to be used in either its vertical or horizontal orientation, depending on the application.

TECHNICAL SPECIFICATIONS

Type: Ultra-compact two-way passive

Drivers: 1 x 12"(300mm) / 2.5"(63.5mm) voice coil LF driver,

             1 x 1'' (25mm) exit HF compression driver

Frequency response: 65Hz-18kHz±3dB

Rated Power: 300W AES, 1200W Peak

Impedance: 8 ohms

Sensitivity: 97dB

Maximum SPL:120dB, continuous,126dB peak

Connector: 2 x Neutrilk NL4

Protective Grille: Grey perforated steel

Dimensions: (W) 398 mm * (H) 571 mm * (D) 365mm

Weight: 21kg

Fukai Audio Manufacturing Ltd. was founded in 2005, specialized in manufacturing top-class pro-audio equipment. Boasting our highly talented professionals and leading technology, we supply and install a comprehensive range of pro-audio equipment including pro-loudspeakers, ...[Read More]

Company Profile:

• Main Product:

  PA speaker,line array,karaoke speaker,audio amplifier,audio processor,pro audio,pro sound,PA equipment,professional loudspeaker,line array system,stage speaker,professional stage monitor,subwoofer,audio,processor,amplifier,PA amplifier,PA audio,controller,loudspeaker

• Business Type:

  Manufacturer

• Current Export Market:

  North America, South America
