Product Name:Vehicle GPS tracker /tracker software

Vehicle GPS tracker /tracker software

Application

universal

Product Description:

tracker software
1, Monitoring and SOS feature
2,can cut -off oil fuction
3,overspeed alert

tracker software

 1.Fuction:

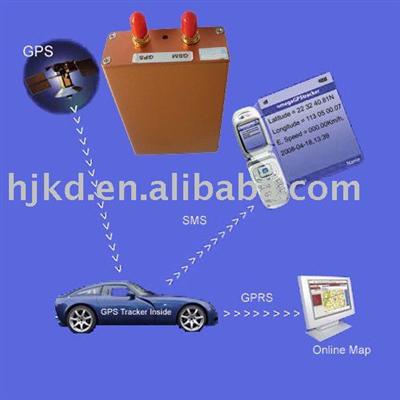

Working Based on existing GSM/GPRS network and GPS satellites, this product can locate and monitor any remote targets by SMS or GPRS.

1.1 Positioning and Tracking: Through the on-line Positioning Platform or the cell phone to locates at times, and get the working status. You can choose the Positioning Platform by yourself.
1.2 Triggering Emergency Alarm: When there is a emergency happened on the vehicle, you can put on the button and the installed unit will send out alarm to the authorized numbers.

1.3 Remote controlling oil and circuit: you can control the oil and circuit via the unit by SMS in anywhere and anytime.

1.4 Remote Monitoring: In anywhere and anytime, call the phone number in the unit, when it connects, you can monitor the sound around 5 meter.
1.5 Movement Alert: Send SMS to the unit to start the movement alert function. When the vehicle is moving, the unit will send the movement alert to all authorized numbers.

1.6 Overspeed Alert: Send SMS to the unit to start the movement alert function. When the vehicle is overspeed, the unit will send the overspeed alert to all authorized numbers.

1.7 Geo-fence: Set up a geo-fence for the unit to restrict its movements within a district. The unit will send the message to all authorized numbers when it breaches the district.

1.8 the unit: send SMS to resume the default of unit.

1.9 Auto Track: You can set up auto track by SMS or on-line positioning platform.

1.10 Mileage statistics; ACC checking; cutting off power and alarm.

1.11 Compatible with the original anti-theft alarm: It will send SMS alarm after the original anti-theft alarm warning.

1.12 Modify the IP and Port of Communication Protocol for different on-line positioning platform

 2 . Application

l  Vehicle rental / Fleet management etc

l  Protect wealth etc

l  Provide peace-of-mind for businessmen

l  Manage personnel

3. SIM card installation

Make sure that there is no call transfer and call display is on, and PIN code off. The SMS message must in Text format, can’t be identified for PDU format.

1 Put SIM card into card box.

2 Put the card box into host as picture.

Q: How to achieve track?
A: To place the terminal in the person, vehicle or thing which being tracked . you can achieve tracking it when you surf Internet at home or use your cell phone. (Note cards of the card must be mobile and need to open GPRS Internet access function)
Q: how to find online goals?
A: You only need to enter the account password, go to our customer service side, click your mouse, that you can find the very intuitive track position. Maps platform containing text, two-dimensional maps and three-dimensional map display, leting you easily to find the target.

Q: What are the conditions to achieve tracking?
A: The Terminal (main machine): received signal
SIM cards (placed inside the terminal): Information Transfer
Map software or service platforms: This is a receiver to receive transmitted through the SIM card terminal signal.

Content

Specs.

Dim.

85mm x 63mm x 18mm(3.3”*2.5”*0.71”)z

Weight

160g

Network

GSM/GPRS/GPS

Band

850/1800/1900Mhz or 900/1800/1900Mhz or 850/900/1800/1900

GPS chip

SIRF3 chip

GSM/GPRS module

Siemens MC55 or Siemens MC56 or Simcom300 or Simcom340

GPS sensitivity

-159dBm

GPS accuracy

5m

Time To First Fix

Cold status  45s

Warm status  35s

 Hot status  1s

Work voltage

DC9V—30V

Battery

3.7V 110mAh

Standby

<50mA

Storage Temp.

-40°C to +85°C

Operation Temp.

-20°C to +70°C

Humidity

5%--95%RH
