Product Name:Mobile Dvr Elp-mdr8041(4ch)

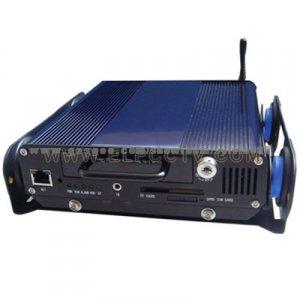

Mobile Dvr Elp-mdr8041(4ch)

Application

Product Description:

Mobile DVR-ELP-MDR80* Series
Item Number:
ELP-MDR8041(4ch)mobile DVR
ELP-MDR8021(2ch)mobile DVR
ELP-MDR8011(1ch)mobile DVR
The Mobile DVR is specially designed for Vehicles surveillance and entertainment. Mini-size make them to be convenient to take, installing is simple.

Key Features include:

•
    Embedded digital video recorder for in-vehicle use.
  • Ultra compact case, extremely low weight, high temperature resistance and   vibration resistant most harsh environment for data safety.
  • High quality MPEG2 compression, 4 levels of video quality, CIF (352x288) to full D1 (704x576) Selectable.
• Shock-resistant cradle, rugged design for maximum reliability.
• Continuous record, alarm triggered recording.
• IR remote controller or control panel.
  • Real time quad display and recording at 25fps (PAL)/30fps (NTSC) per camera.
• 2.5-inch removable hard drive and CF card recording.
• Manages storage and recycles space automatically.
• Remote access by LAN or Internet is supported by standard browser.
  • Vehicle status sensor displays and records time/date, vehicle speed, Route-ID, left/right turn, brake, reverse, door open signals on video.
  • Motion detection supportable: 4 Alarm Input and 2 Alarm Output connections allow external events to turn on recording or be turned on by motion detection.
• Post recording of 0- 65535 seconds after ignition off.
• Support wide range of voltage input (8V~32V).
• 12V, 1.0A power out connection for CCTV cameras.
• Bookmark button for easy search and review of incidents.
• Error-resistant file system design, compatible with FAT32 file system.
  • Embedded powerful central management software for controlling the system remotely .
  • GPRS function (quad bands) available for LIVE monitoring and GPS location info of each car.
• Multi-layers password protection.
• Highly efficient power management.
• Self contained aluminum die-cast enclosure to protect from dust and moisture.
• Optional accessories: GPS receiver, wired control panel, USB reader.

•
  Power In:8V~32V,DC.
• Power Out:12V,DC,Max Current 1A.
• Video Input:4 channels/2 channels/1 channel,1.0Vp-p,75,BNC.
• Video Out:1 channel,1.0Vp-p,75,BNC.
• Video Standard:PAL/ NTSC.
• Audio Input:2 channels, Line In,50~400mv,50Hz~3500Hz.
• Audio Out:1 channel.
• Compression:MPEG2.
  • Video Recording:MAX Resolution:704*576,Frame Rate:25fps(PAL),30fps(NTSC).
• Storage: 1. Removable Hard Disk Drive(standard 2.5 inch for laptop)
                   2.CF Card.
• Alarm Input:4 Alarm Input.
• Alarm Output:2 Alarm Output.
• Ethernet:10/100M Base-T,RJ45.
• GPS:NMEA 183.
• PTZ:RS485.
• Language:English / Chinese.
• Product Size:180*173*42 mm.
• Weight:3.5Kgs.
• Power Consumption:10W (15W when with Hard Drive).
• Working Condition:Temperature:0~+50,Humidity:<90%.
