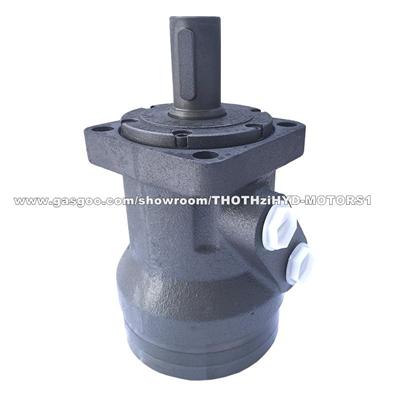

Low Speed High Torque Orbit Hydraulic Motor BMR THOTH/ZiHYD

    • Typical Clients: Sany, XCMG, Zoomlion, Liugong, Kion, Kubota, Siloking, Goeweil
    • Market Type:OE Market
    • FOB Price: Inquiry For It?
    • Payment Terms: L/C, D/A, T/T

Quick Details

  • Torque:

    135Nm

  • RPM:

    10-775rev/min

  • Material:

    Cast steel

Product Name:Low Speed High Torque Orbit Hydraulic Motor BMR THOTH/ZiHYD

Low Speed High Torque Orbit Hydraulic Motor BMR THOTH/ZiHYD

Product Description:

OMR / BMR / MLHR / S SeriesOrbital Hydraulic Motor From Ningbo Zhongyi Hydraulic Motor Co., ltd

INTRODUCTION

OMR / BMR Orbital Hydraulic Motor, with its shell made of ductile cast iron of adequate intensity, can be applied to situations with less load and interval operation, widely toagriculture, forestry, plastics, machine tools and mimachines, such as the mould height adjustment of the injection machine, the cleaner, the sawthe worktable etc.

CHARACTERISTICS



1.The output shafts, with teh deep groove ball bearing, can bear certain axial force and radial force.
2.With the axial oil distribution structure, it is of smaller size and less weight.
3.With two inner check valves, no drain connection.
4.With cycoid group with teh roller, it has a small friction and high mechanical effciency.


TECHNICAL DATA

TYPE BMR-50
BMRW-50
BMRS-50
BMR-80
BMRW-80
BMRS-80
BMR-100
BMRW-100
BMRS-100
BMR-125
BMRW-125
BMRS-125
BMR-160
BMRW-160
BMRS-160
BMR-200
BMRW-200
BMRS-200
BMR-250
BMRW-250
BMRS-250
BMR-315
BMRW-315
BMRS-315
BMR-400
BMRW-400
BMRS-400
Displacement(ml/r) 51.7 80.5 100.5 126.3 160.8 200.9 252.6 321.5 401.9
Max.Pressure.Drop(Mpa) cont. 14 14 14 14 14 14 11 9 7
int. 17.5 17.5 17.5 17.5 17.5 17.5 14 11 9
peak. 20 20 20 20 20 20 16 13 11
Max.torque(N.m) cont. 93 152 194 237 310 369 380 380 380
int. 118 189 236 296 378 450 470 470 470
peak. 135 216 270 338 433 509 540 540 540
Speed.Range(cont.)(r/min) 10-775 10-750 10-600 10-475 10-375 10-300 10-240 10-190 10-160
Max.Flow(cont.)(L/mim) 40 60 60 60 60 60 60 60 60
Max.Output.Power(cont.)(Kw) 7 10 10 10 10 8 6 5 4
Weight(Kg) 6.5 6.9 7 7.3 7.5 8 8.5 9 11

Intermittent operation the permssible values may occur for max. 10% of every minute
Peak load: the permissible values may occur for max.1% of every minute

Code Comparison
ZIHYD BMR
Danfoss OMR
M+S EPRM
Eaton S series


New Automation Manufacturing System Is In Operation.
THOTH/ziHYD Will Be The Only Hydraulic Motor Manufacture In All Of China To Have Such Modern Technology.
